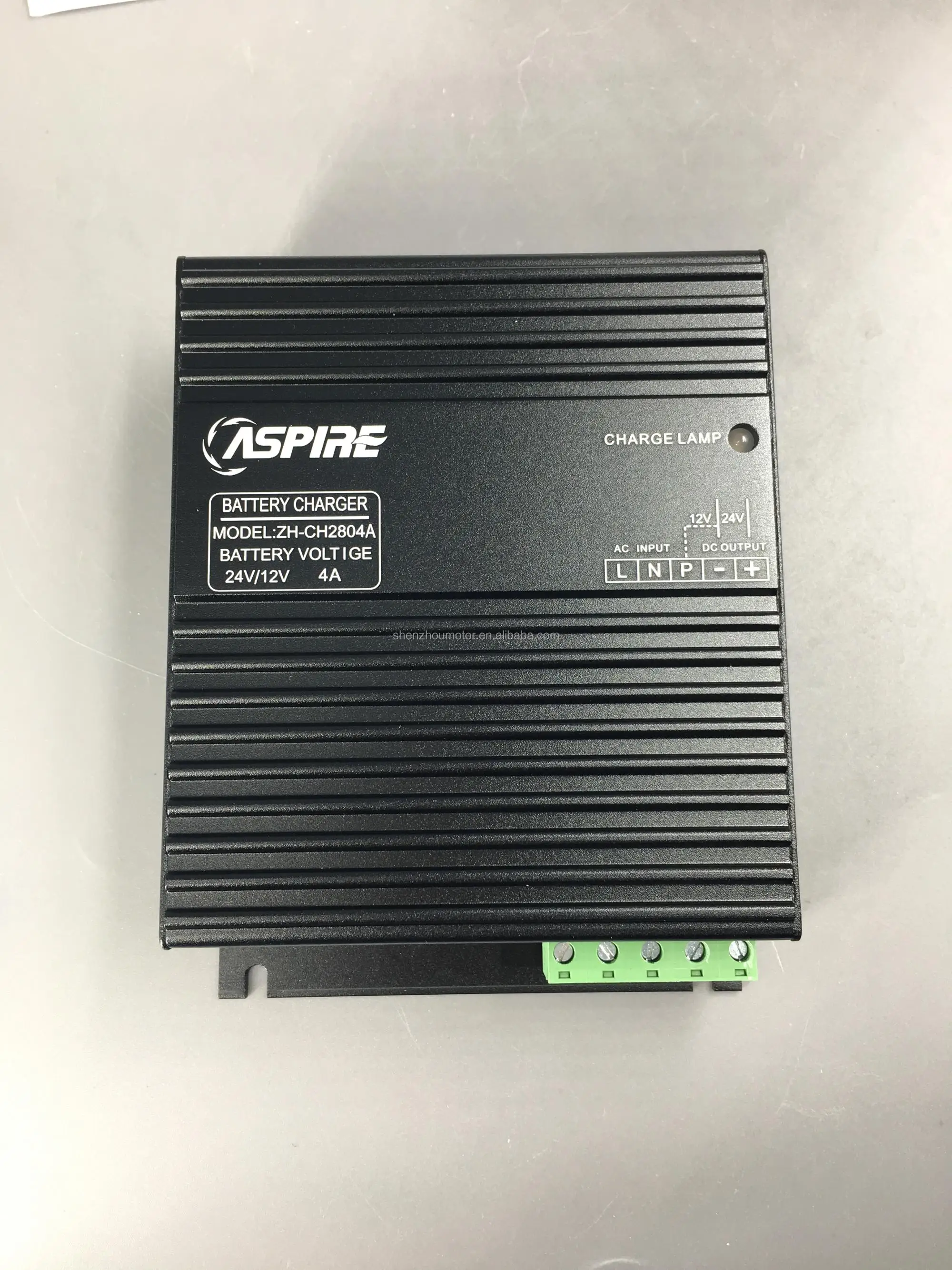

12V 24V Generator Set Battery Charger 4A, 5A,10A, 30A

FOB Reference Price:Get Latest Price
US $19-21 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
300 Piece/Pieces per Day
Port:
FUZHOU
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
None
Model Number:
ZH-CH 4A
Usage:
Diesel Genset
Stock:
Yes
OEM Service:
Yes
Voltage:
12v/24v
Current Type:
Floating Charging Current
Dimensions:
160*110*60mm
Other Models:
ZH-CH28 10A ZH-CH28 6A
Warranty:
One Year
Keyword:
Generator Set Battery Charger
Packaging & Delivery
Packaging Details
Carton box.The size:160*110*60mm(L*W*H)

12V 24V Generator Set Battery Charger 4A, 5A,10A, 30A

DETAILS

Intelligent Charger is specially designed for starting or working of storage battery (especially suited for full-sealed solid wide-temperature storage battery) in diesel engine. It is a intelligent mode of switch structure. It is the only one charger in market which can automatic identify charging voltage, current and can automatic switch over corresponding output voltage. It features in constant pressure, constant current, tricking current, resistance of short circuit, and fully automated function.



SPECIFICATION

Power Input

Voltage 160~250 VAC
Frequency 20~100Hz

DC Output

Voltage 13.8 VDC, Current 5A--when battery group=12V
Voltage 27.6 VDC, Current 3A--when battery group=24V

Charge Mode

Float charge

DC Voltage Regulation

< ±1%

Efficiency

> 80% @ Full load

Contact Capacity

0.5A @ 120 VAC

Protection

Reverse polarity, over-voltage, short circuit, current limiting

Environment

Operating Temperature : -40~50 °C
Storage Temperature : -20~60 °C
Relative Humidity : Maximum 90%
Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz

Dimensions

180(L) x 160(W) x 60 (H) mm



FEATURES

  • Wide working voltage of AC 160~250V, and working frequency of 20~100Hz, can insure the engine still be charged at the low speed of rotation (users can directly replace the fuselage charger, or supply electricity for the whole city).
  • It can work in a wide temperature between -40 ℃ and +50 ℃ , and can be used in a 98%RH wet condition without congealing.
  • Constant current and fast charging. When the pressure of charge battery lower than the set value (12V battery group<12V, 24V battery group<24V), charge engine will work at the highest speed with a constant current. If electrical machine works at the same time, starting current is a large flow (charge engine is close to short circuit), but its constant current feature makes the equipment undestroyed.
  • Limited current. When the voltage of storage battery is full, (12V battery group≥12V, 24V battery group ≥ 24V) charge current will be automatically limited.
  • Tricking current and float charging. It will turn to float charging within about 0.1~0.2A, (Relevant to the amount of electricity the objective equipment consumed) when the voltage reaches the set value. (13.8 V in the state of 12V, and 27.6 in 24V).
  • Stop charging. When the voltage of battery reaches the full value, (14 V in the state of 12V, and 28V in 24V) charging will be shut completely.
  • Over current and protection against for short circuit. Charging engine functions in over current and protection against for short circuit. When the capacity of battery is big, (inner resistance is small) bearing short circuit or charge engine is close to normal electricity and the storage battery starts diesel engine at the same time, the output current will still be constant and not be destroyed. Thus, when the storage battery used as the starting battery, charging engine cannot be shut.
  • Soft start. Because the system adopts the soft start function, it will not produce spark for electrical impulse. Besides, when the engine is connected online, it will not interrupt the electricity system.




FACTORY PICTURE



PAYMENT TERM

We can accept Paypal, Money Gram, West Union, TT and Cash



SHIPMENT TERM

If you need other shipment, please inform me.



GUARANTEE

  • Guarantee:365days after the goods has been received
  • During the guarantee,the items enjoy free repairs or replacement.
  • Customer is responsible for the freight back and forth and the custom tax.
  • You may consider to send the defective item with an economical way,and we send back the repaired items with your new order together
