SZN184 Alternators on Sale Replacement For the Generator Head

FOB Reference Price:Get Latest Price
US $600-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
None
Model Number:
SZN184
Output Type:
AC Three Phase
Speed:
1500/1800RPM
Frequency:
50/60Hz
Rated Power:
34/83KW
Rated Voltage:
120V/690V
Rated Current:
Voltage
Certificate:
CE, ISO9001
Warranty:
One Year
Stock:
Yes
Package:
Plywood case/wooden case
Package Size:
77*55*55CM
Net Weight:
170KG
Gross Weight:
180KG
Appearance:
As original
Keyword:
used alternators for sale
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case/wooden case
Port
FUZHOU
Lead Time :
Shipped in 20 days after payment

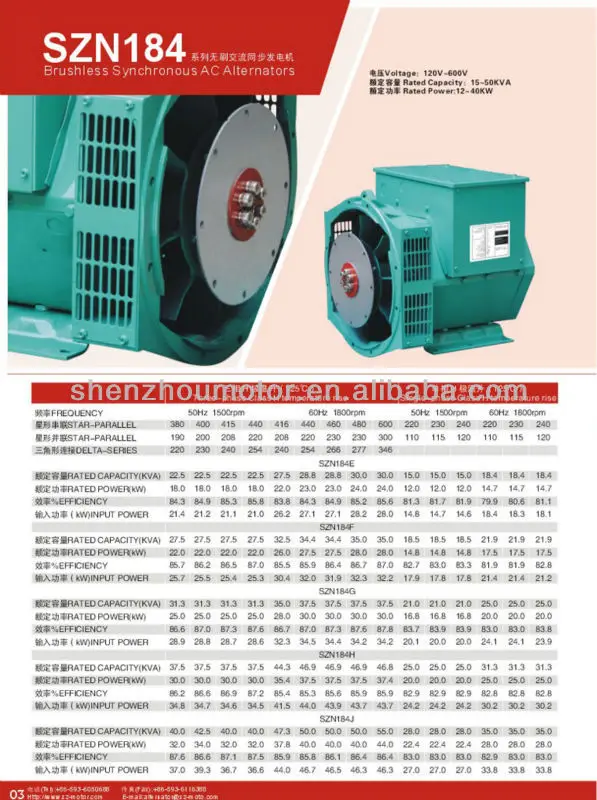

SZN184 Alternators on Sale Replacement For the Generator Head



Product Description









MECHANIC FEATURES







all industrial standard generators are IP22 code NEMA1,IP23 is optional ,but rated power will decrease 5% marine standard generators are Ip23 code ,Air filter is optioal ,but rated power will decrease 5% if installed.







SHAFT AND KEYS







all genertor rotors are dynamically balanced to better than BS6861part1 Grade 2.5 for minimum vibration in operation two bearing generator are balanced with a half key .







TERMINALS&TERMINAL BOX







standard generators are 3-phase reconnecttable with 12 ends brought out to the terminals ,which are mounted on a cover at the nondrive end of the generator ,A sheet terminal box contains the avr and provides ample spacr for the customers' wiring and gland arrangements ,It has removable panels for easy access.



SZN184_firstSZN184_second



ModelOutput (kW) 50Hz/4pole/400VOutput (kW) 60Hz/4pole/480V
KVAKWKVAKW
SZN164A8.16.58.97.2
SZN164B11.08.812.19.7
SZN164C13.510.814.911.9
SZN164D16.012.817.614.1
SZN184E22.51824.819.8
SZN184F27.52230.324.2
SZN184G31.32534.427.5
SZN184H37.53041.333.0
SZN184J42.53446.837.4
SZN224C42.53446.837.4
SZN224D50.04055.044.0
SZN224E60.04866.052.8
SZN224F72.55879.863.8
SZN224G85.06893.574.8
SZN274C100.080110.088.0
SZN274D120.096132.0105.6
SZN274E140.0112154.0123.2
SZN274F160.0128176.0140.8
SZN274G180.0144198.0158.4
SZN274H200.0160220.0176.0
SZN274J230.0184253.0202.4
SZN274K250.0200275.0220.0
SZN314C250.0200275.0220.0
SZN314D295.0236324.5259.6
SZN314E325.0260357.5286.0
SZN314F380.0304418.0334.4
SZN354C450.0360495.0396.0
SZN354D500.0400550.0440.0
SZN354E600.0480660.0528.0
SZN354F670.0536737.0589.6
