Permanent Magnet Alternator Brushless SZN164

FOB Reference Price:Get Latest Price
US $100-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
None
Model Number:
SZN164
Output Type:
AC Three Phase
Speed:
1500/1800RPM
Frequency:
50HZ / 60HZ
Rated Power:
6~12KW
Rated Voltage:
120~690V
Rated Current:
Voltage
Rated Capacity:
8~16KVA
Certificate:
CE, ISO9001
Warranty:
One Year
OEM Service:
Yes
Keyword:
permanent magnet alternator
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case/wooden case
Port
FUZHOU
Lead Time :
Shipped in 5 days after payment

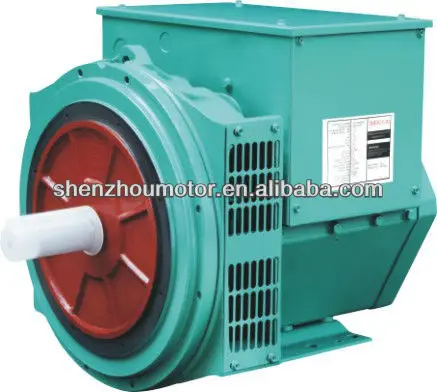

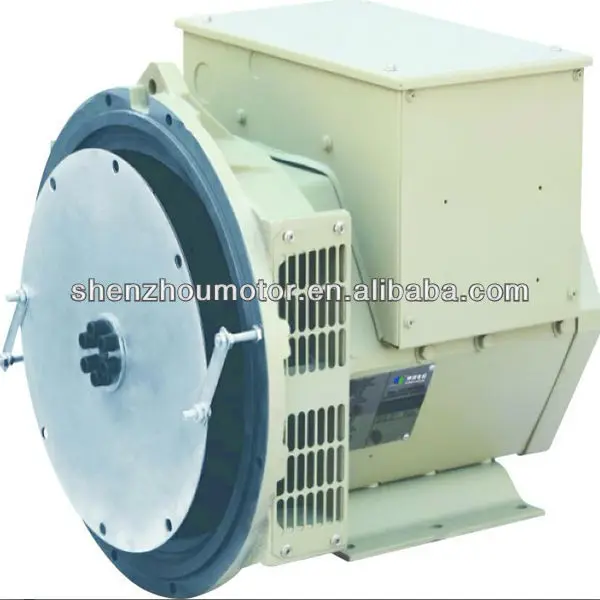

Permanent Magnet Alternator Brushless SZN164



Product Description

 Features:

1. Optional permanent magnecitc generators providing invariable excitation on all occasions.

2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.

3. Balanced rotor. Single or two sealed ball bearings.

4. Convenient installation and maintenance with easy access to terminal,  rotating diodes and coupling bolts.

5. Wide range of Flange adaptor and single bearing couping disc.

6. Meet leading industry and Marine standards. Special voltage generators can be manufactured accoring to end users' requirement.

Single-phase generators minimum voltage can be 110V. Three-phase generators maximum voltage can be 690V.

ModelOutput (kW) 50Hz/4pole/400VOutput (kW) 60Hz/4pole/480V
KVA KWKVA KW
SZN164A8.16.58.97.2
SZN164B11.08.812.19.7
SZN164C13.510.814.911.9
SZN164D16.012.817.614.1
SZN184E22.51824.819.8
SZN184F27.52230.324.2
SZN184G31.32534.427.5
SZN184H37.53041.333.0
SZN184J42.53446.837.4
SZN224C42.53446.837.4
SZN224D50.04055.044.0
SZN224E60.04866.052.8
SZN224F72.55879.863.8
SZN224G85.06893.574.8
SZN274C100.080110.088.0
SZN274D120.096132.0105.6
SZN274E140.0112154.0123.2
SZN274F160.0128176.0140.8
SZN274G180.0144198.0158.4
SZN274H200.0160220.0176.0
SZN274J230.0184253.0202.4
SZN274K250.0200275.0220.0
SZN314C250.0200275.0220.0
SZN314D295.0236324.5259.6
SZN314E325.0260357.5286.0
SZN314F380.0304418.0334.4
SZN354C450.0360495.0396.0
SZN354D500.0400550.0440.0
SZN354E600.0480660.0528.0
SZN354F670.0536737.0589.6

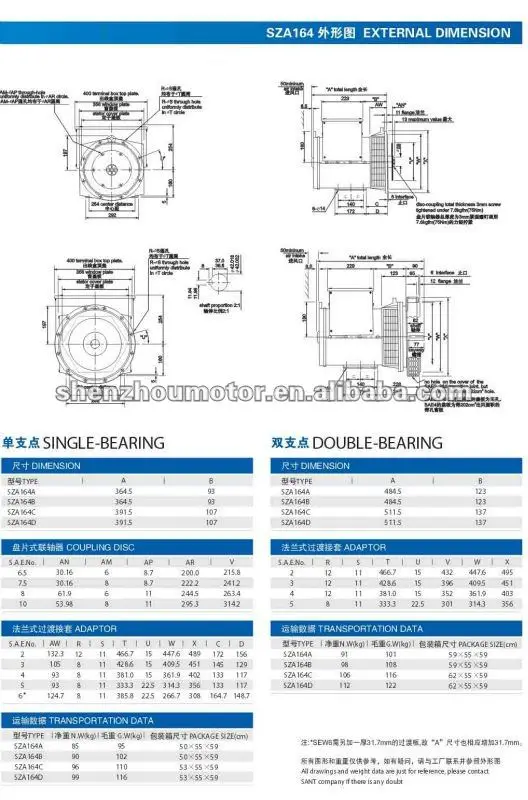

164-1164-2164164-1-small

274-1



Company Information

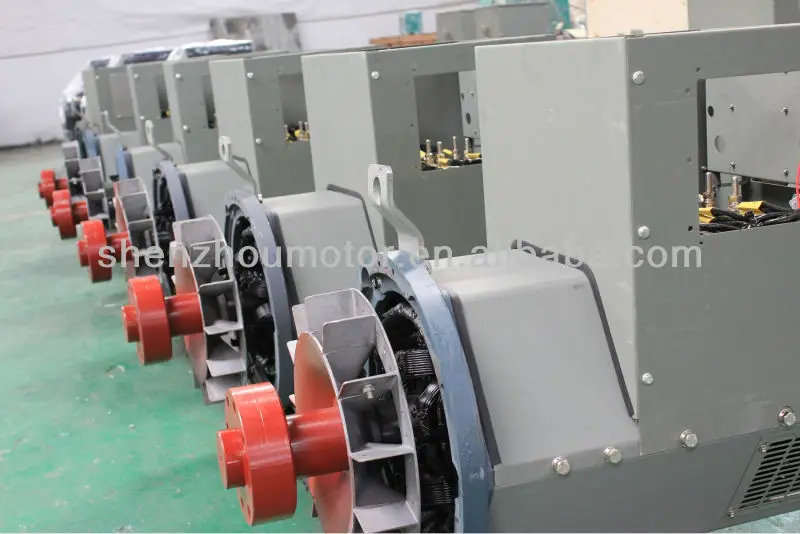

 factory
